SK350DLC
POWER &
VERSATILITY
Although single-function machines are highly effective for specific tasks, they run the risk of sitting idle for long periods of time at busy work sites Kobelco provides an effective and highly-productive solution to this problem.
The Kobelco SK350D LC is a revolutionary demolition machine for entire buildings, from rooftops to foundations. The SK350DLC can quickly demolish entire buildings, from rooftops to foundations without the need of secondary machines.
ULTRA-LONG ATTACHMENT
Strong, three-piece attachment for
demolishing structures as high as 20 m.
For added versatility, the attachment can
be shortened by removing the insert boom.
Maximum working height
Blade tip: 23.07 m
Arm top pin: 20.49 m
SEPARATE BOOM
Sturdy boom for a variety of operations, including demolishing mid-rise buildings all the way down to their foundations. A large crusher can be attached for powerful and speedy demolition.
Features & Benefits
- Newly developed XD boom made of stronger plates
- Top class traveling force
- Reinforced boom and arm
- Large, reinforced track guides
- Powerful travel system
- Improved filtration system
- Thick upper under covers for increased durability
- Long, solid rock guards
- Hydraulic drive for engine cooling fan
- Independent oil cooler fan
- Reinforced guide frame
- Double-support outer flange upper rollers
- Thicker steel plate for shoes
- Increased durability of the track link
- Lower frame underside cover to protect against damage
- Arm regeneration system
- Fuel efficient ECO-mode
- Larger cab for easy ingress & egress
- More comfortable seat
- Air conditioner louvers behind the seat
- Super airtight cab
- Multi-display in color
- Low vibration
- One-touch attachment mode switch
- Wide front window for unobstructed view
- Convenient interior equipment
- A lighter touch lever for reducing operator fatigue
- Improved operational safety cab guard (optional)
- Rearview mirrors for wide view during operations
- Rear view camera (optional)
- Travel alarm(optional)
- Hammer for emergency exit
- Spacious engine compartment for easy, on-the-spot maintenance
- The layout allows for easy access from ground level
- Special crawler frame for easy mud removal
- Easy cleaning with detachable two-piece floor mat and a floor drain
- Engine oil pan equipped with drain valve
- Easy removal of internal and external air conditioner filters
TECHNICAL SPECIFICATIONS
| Model | SK350DLC - 8 | |||
|---|---|---|---|---|
| Operating Weight (main unit + main boom) | 32,700 (kg) | |||
| Items | Ultra Long Attachment | Separate boom | Demolition backhoe | Units |
| Attachment weight(excluding crusher) | 6800 | 5500 | 4500 | kg |
| Front Attachment | KR1100T(P)R-2 | KR1350T(P)R-40 | 1.4 m3 HD bucket | - |
| Operating Weight | 42100 | 42000 | 38500 | kg |
| Max. Crusher Weight | 2600 | 4000 | - | kg |
| Crawler Width | 3200 | mm | ||
| Swing Speed | 5.5 | 10 | min-1 | |
| Travel Speed | 5.6/3.3 | km/h | ||
| Gradeability | 70(35) | %(deg) | ||
| Ground Pressure | 79{0.80} | 78{0.80} | 72{0.73} | kPa{kgf/cm2} |
| Engine Model | HINO J08E – TM | |||
| Engine Rated Power Output | 197{265}/2,100 | kW{PS/min-1} | ||
| Fuel Tank | 580 | l | ||
| Hydraulic pump set Pressure | 31.4 {320} | Mpa{kgf/cm2} | ||
| Hydraulic Capacity | System 377 / Tank level 280 | l | ||
DIMENSIONS

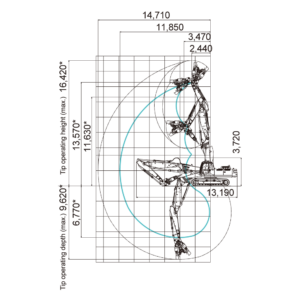

WORKING RANGE

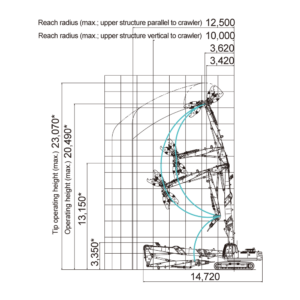

ULTRA-LONG ATTACHMENT
Diagram shows KR1100TPR attached
Compatible attachments
